Overview

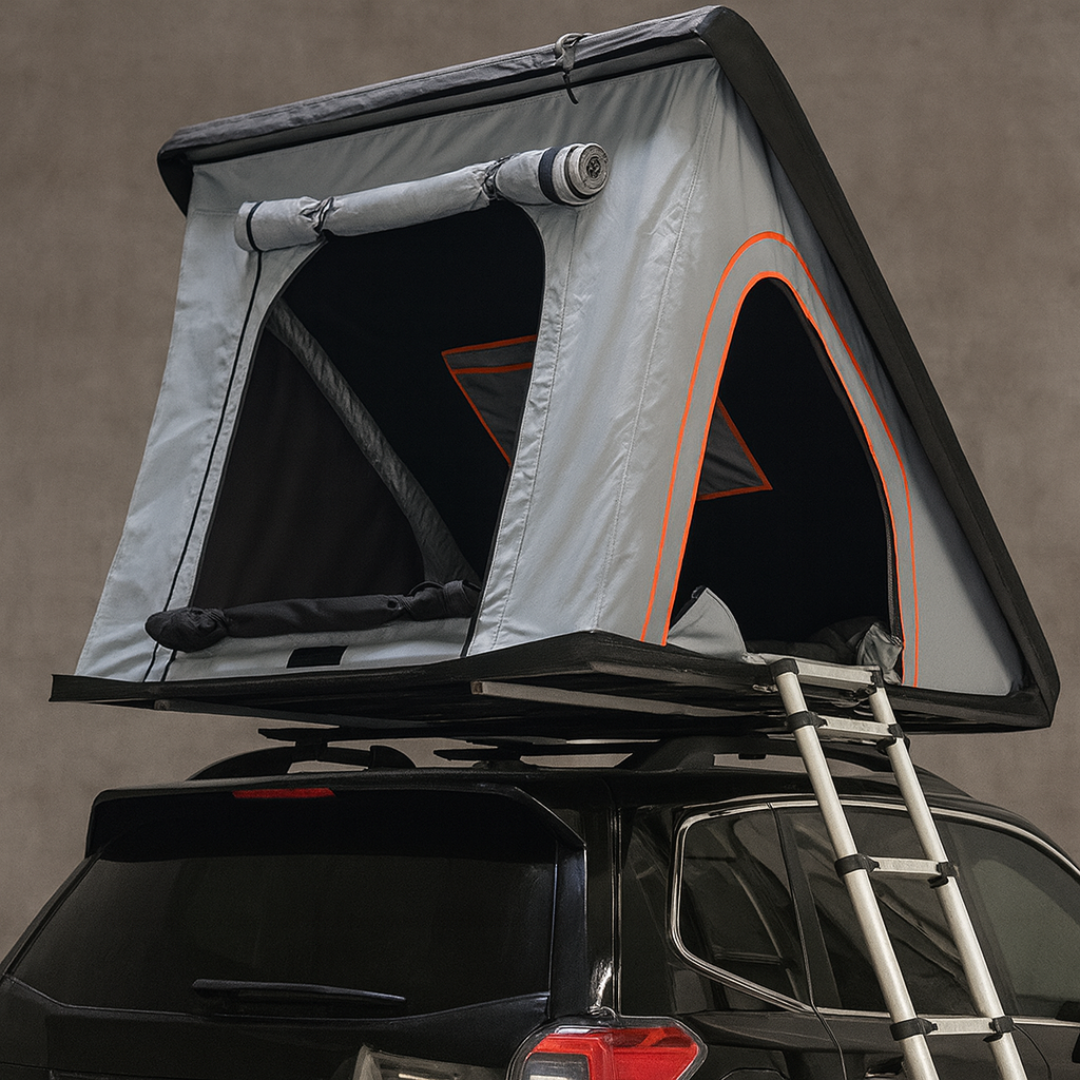

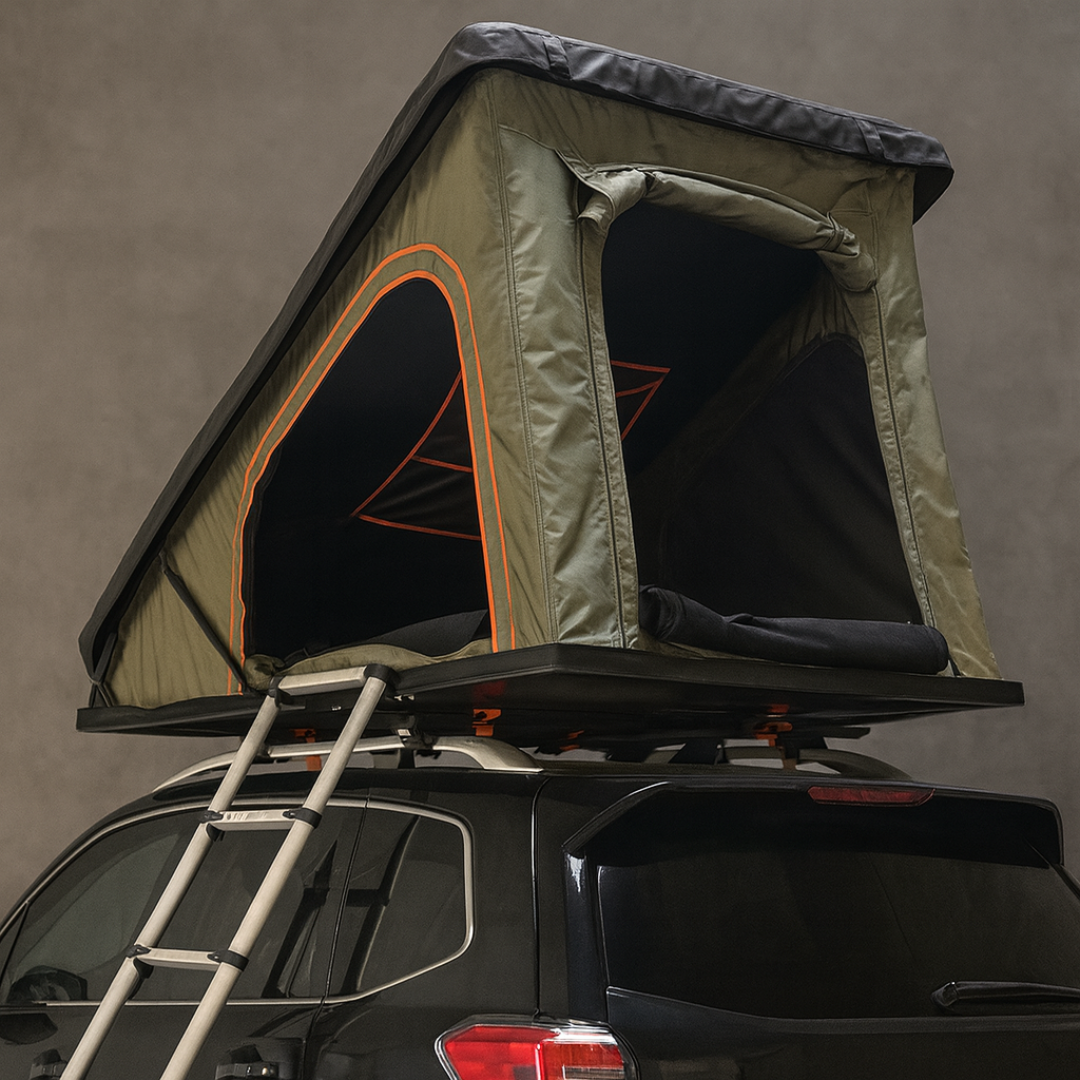

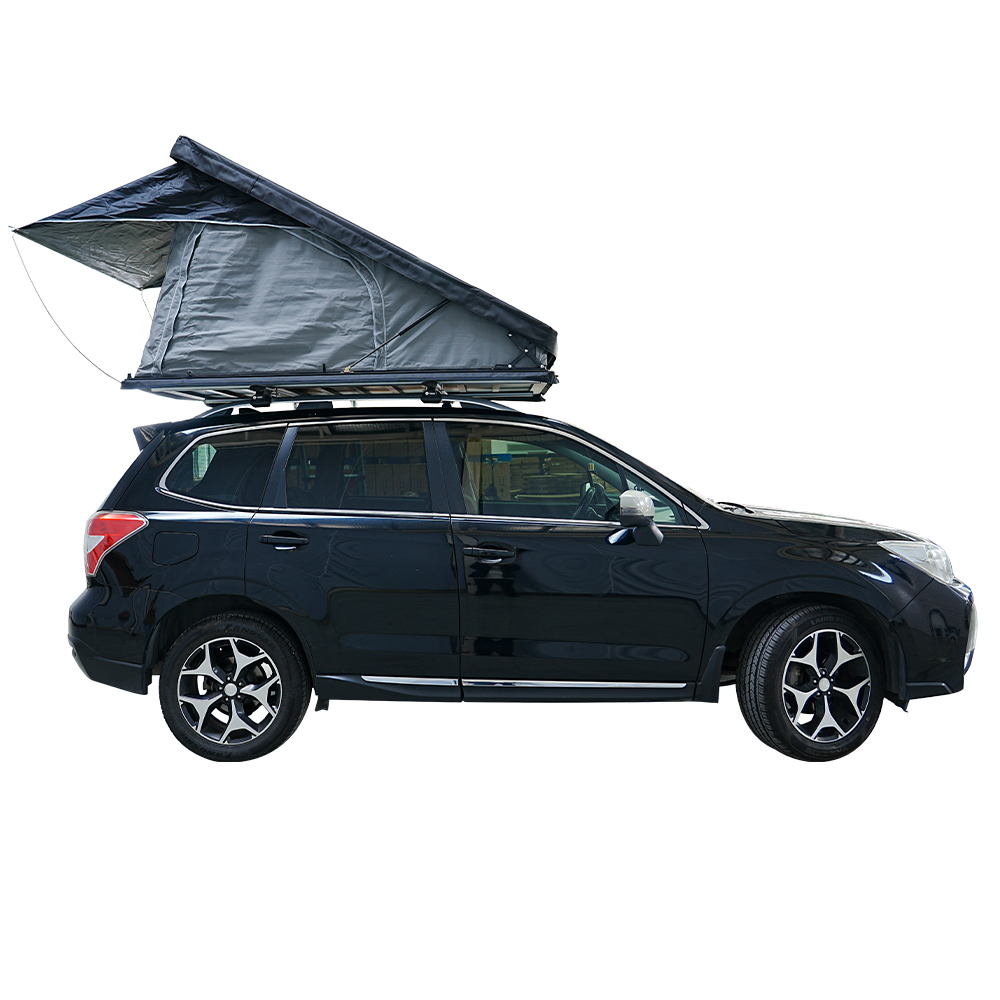

This clamshell soft shell rooftop tent is a narrow, wedge-style tent built for one or two adults, with room for a third person when needed. It opens along one edge and lifts into a stable, wind-shedding shape, giving you full sitting height at the head end while keeping the footprint compact on the roof. A 30 mm foam mattress, aluminum frame, and rip-stop polyester fabric make it a simple, durable sleeping solution for smaller vehicles.
Three-season clamshell design
By your internal classification, this soft shell tent is a three-season model, intended for spring, summer, and autumn. The outer cover uses 1680D polyester with a PU coating, which protects the tent while it’s closed and traveling. The main tent fabric is 420D polyester rip-stop, rated waterproof to 3500 mm and treated for UV and mold resistance, so it handles sustained rain and strong sun when properly maintained.
The clamshell geometry means fewer poles and fewer moving parts than a traditional side-fold soft shell, which keeps setup straightforward and helps the tent resist wind when the head end is pitched toward the breeze.

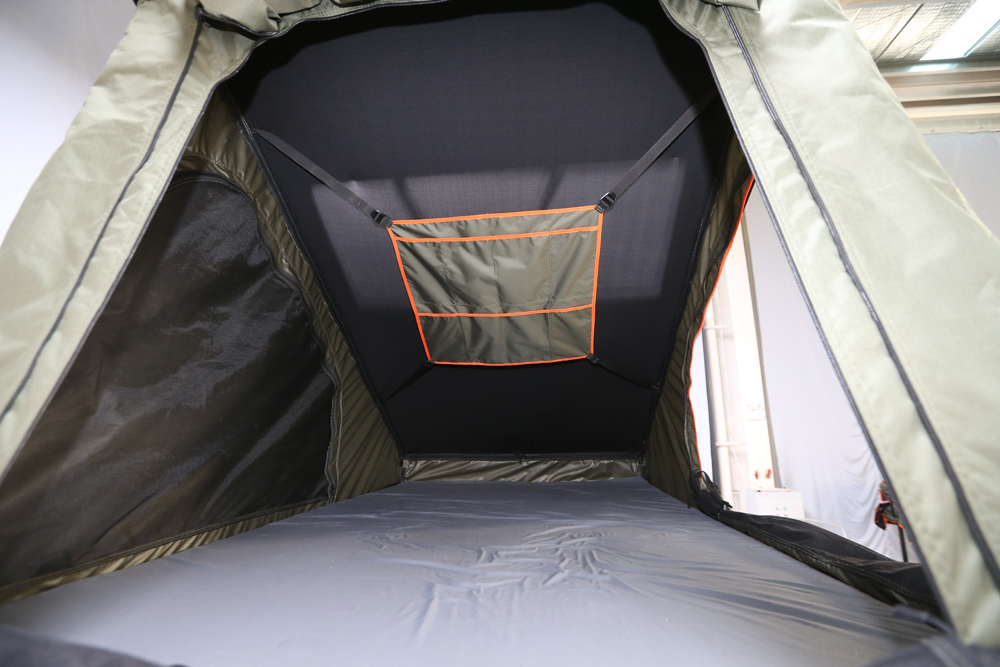

Space and layout
Inside, the sleeping area is 205 x 135 x 130 cm:
-
Floor: 205 x 135 cm (about 81 in x 53 in, roughly 6 ft 9 in x 4 ft 5 in)
-
Peak internal height: 130 cm (about 51 in, a bit over 4 ft)
This size is suited to 2 adults, with room for gear or a third smaller person.
A 30 mm (3 cm) thick foam mattress with a washable cover is included. The mattress is continuous across the floor, so you’re not dealing with multiple cushions or seams.
Construction and access

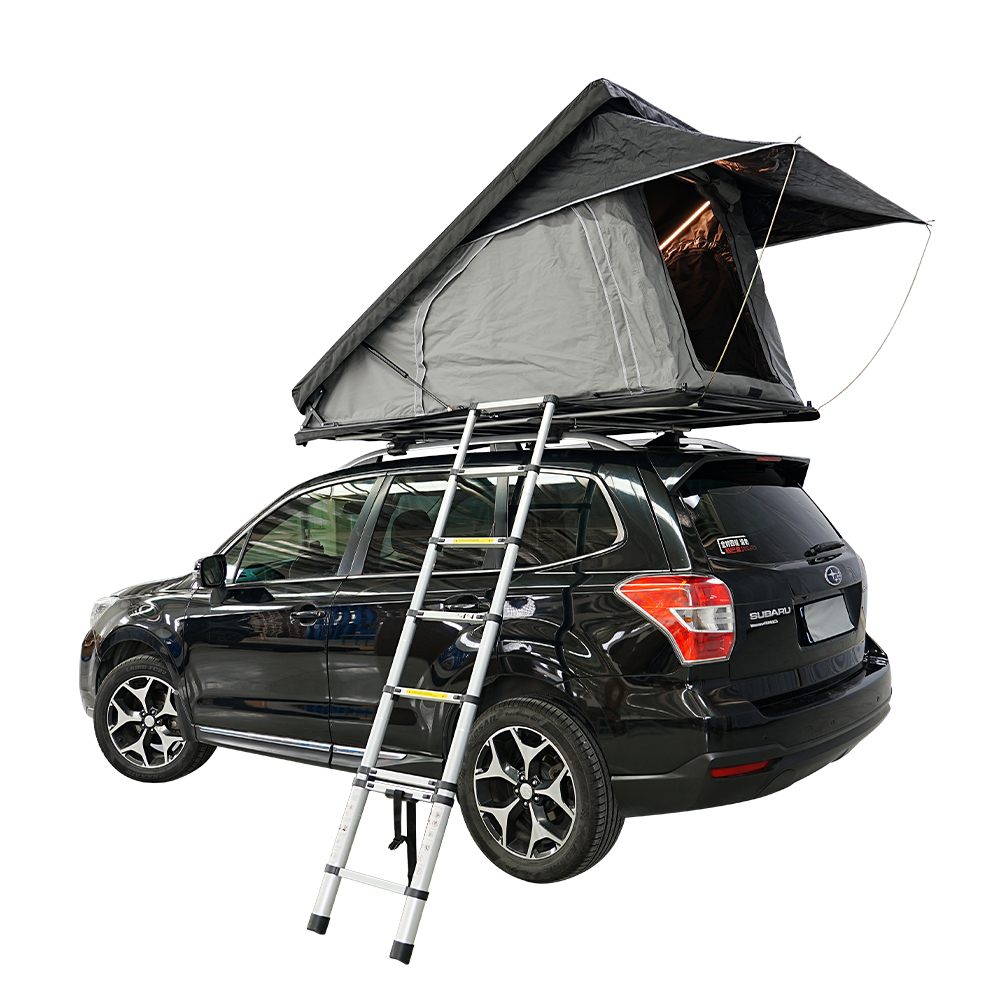

The tent is built around an aluminum frame and mounts to a standard roof rack or crossbars. Access is via an aluminum anodized telescopic ladder, which adjusts to your vehicle height and packs with the tent. The clamshell lid is supported by the frame when open; when closed, the 1680D cover wraps around and protects the fabric and mattress from weather and road grime.
All installation parts are included from the manufacturer, and the package ships in a low, flat carton to simplify handling during installation.
Optional accessories listed by the supplier include a LED light strip (1.5 m), an anti-condensation mat, and shoe bags, which extend the basic kit without changing the main structure of the tent.
Key features
-
Clamshell soft shell rooftop tent – wedge-style opening with a compact footprint on the roof.
-
Sleeping area 205 x 135 cm (≈81″ x 53″) – sized for 2 adults, usable for up to 3 people.
-
Interior height 130 cm (≈51″) – enough to sit up at the high end.
-
30 mm foam mattress with washable cover – integrated sleeping surface, easy to clean.
-
1680D polyester travel cover with PU coating – heavy outer cover that protects the tent while closed.
-
420D polyester rip-stop body, 3500 mm waterproof – UV- and mold-resistant main fabric for three-season use.
-
Aluminum frame and floor support – rigid base structure that bolts to crossbars or a rack system.
-
Aluminum anodized telescopic ladder – adjustable access ladder included.
-
Install parts included – mounting hardware supplied by the manufacturer.
-
Accessory options – LED light (1.5 m), anti-condensation mat, and shoe bags (2-bag set).
Technical specifications – Clamshell Soft Shell
Category
-
Three-season clamshell soft shell rooftop tent
Sleeping capacity
-
2–3 person
Sleeping footprint & height
-
Floor: 205 x 135 x 130 cm
-
Approx. 81 in x 53 in x 51 in
-
Roughly 6 ft 9 in x 4 ft 5 in x 4 ft 3 in
-
Closed / packing size
-
222 x 152 x 16 cm
-
Approx. 87 x 60 x 6 in
Weights
-
Gross weight: 53 kg (about 117 lb)
-
Net weight: 46 kg (about 101 lb)
Cover & fabric
-
Outer cover: 1680D polyester with PU coating
-
Floor / frame: aluminum frame
-
Tent body material: 420D polyester rip-stop, waterproof 3500 mm, UV and mold resistant
Mattress
-
Foam mattress, 30 mm (3 cm / ~1.2 in) thickness, washable cover
Ladder
-
Aluminum anodized telescopic ladder
Included hardware
-
Install parts for mounting to roof rack / crossbars
Manufacturer accessory options
-
LED light (1.5 m)
-
Anti-condensation mat
-
Shoe bags (pair)
