Basecamp 190™
Long-Style Soft Shell Rooftop Tent
Recommended Capacity:
• 4–5 people
• Ideal for families and group overland travel
• Excellent for taller sleepers

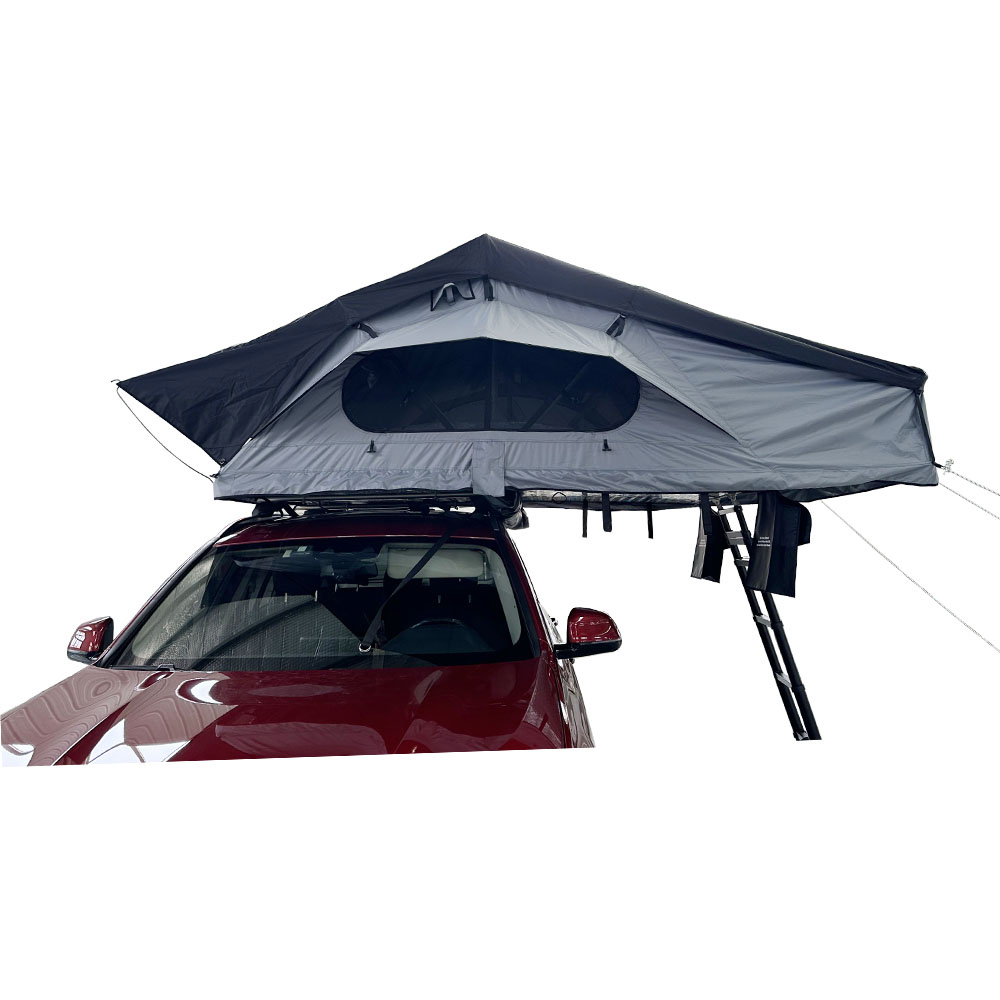

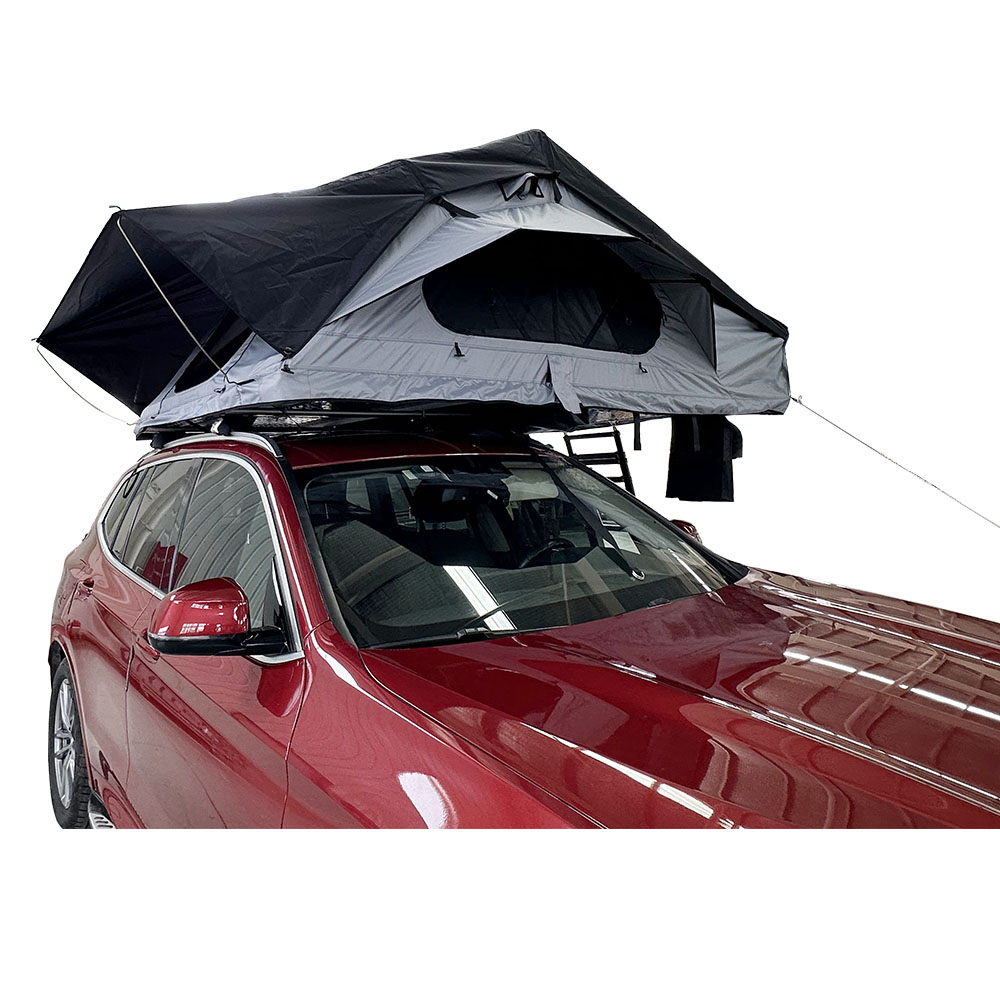

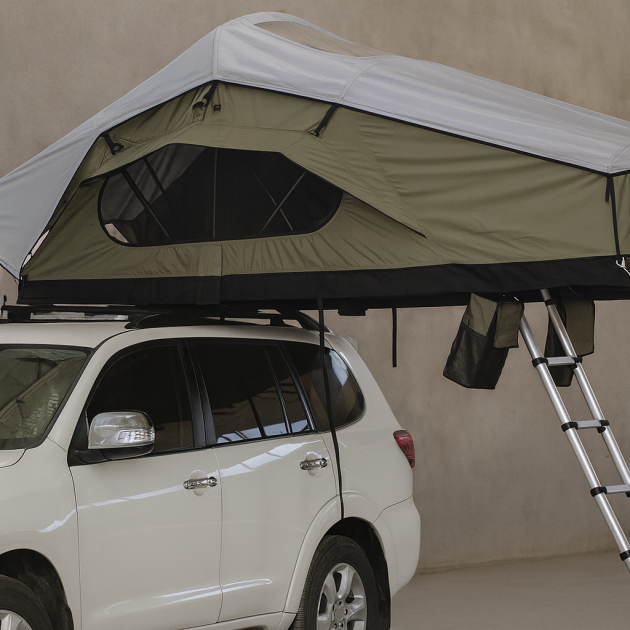

The Basecamp 190™ is a long-style side-fold soft shell rooftop tent designed for families and groups who need maximum sleeping space without stepping up to a trailer.

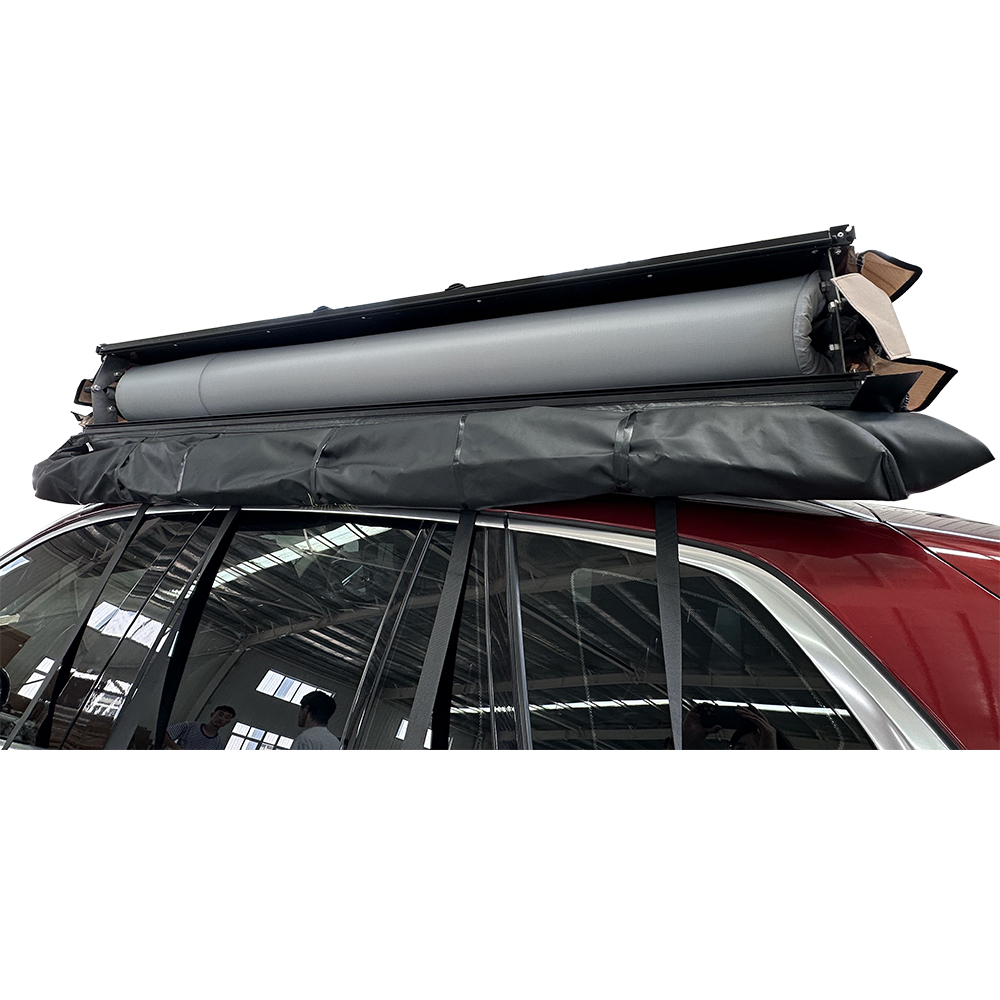

With its extended 240 cm platform and wide 190 cm footprint, the Basecamp 240™ transforms your roof rack into a true elevated basecamp for spring, summer, and fall adventures. When closed, it packs into a compact rectangular bundle protected by a heavy-duty travel cover. When deployed, it opens into one of the most spacious rooftop sleeping platforms in its class.
If your priority is sleeping capacity, comfort, and simplicity — this is your family solution.
Maximum Sleeping Space
Sleeping Area: 190 × 240 cm
Approx. 74 in × 94 in
Roughly 6 ft 3 in × 7 ft 10 in
The extended 240 cm length runs along the vehicle, giving extra legroom for taller sleepers and more layout flexibility for families.
Comfortably fits 4–5 people — typically 2 adults with children, or 3–4 adults who want additional space.
Built for Three-Season Adventures
The Basecamp 240™ is a dedicated three-season soft shell rooftop tent designed for spring, summer, and autumn travel.
• 420D diamond rip-stop polyester Oxford rainfly (2500 mm waterproof rating)
• 420D rip-stop polyester tent body (3000 mm waterproof rating)
• UV 50+ protection
• Mold-resistant fabric treatment
• Heavy-duty 680 gsm PVC travel cover (approx. 10,000 mm waterproof rating)
The layered fabric system provides reliable protection from sustained rain while maintaining airflow for warm-weather camping.

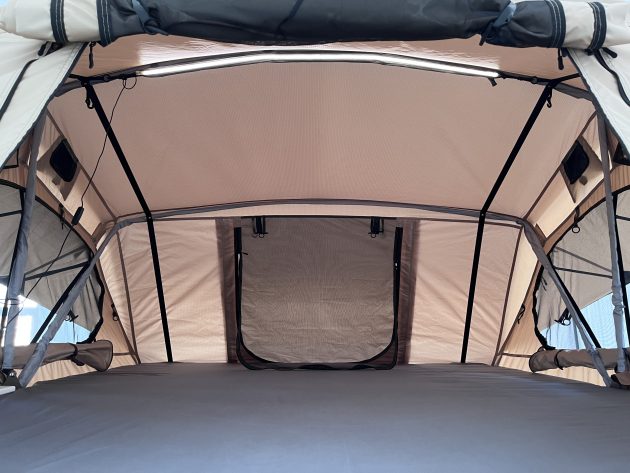

Comfort and Interior Layout

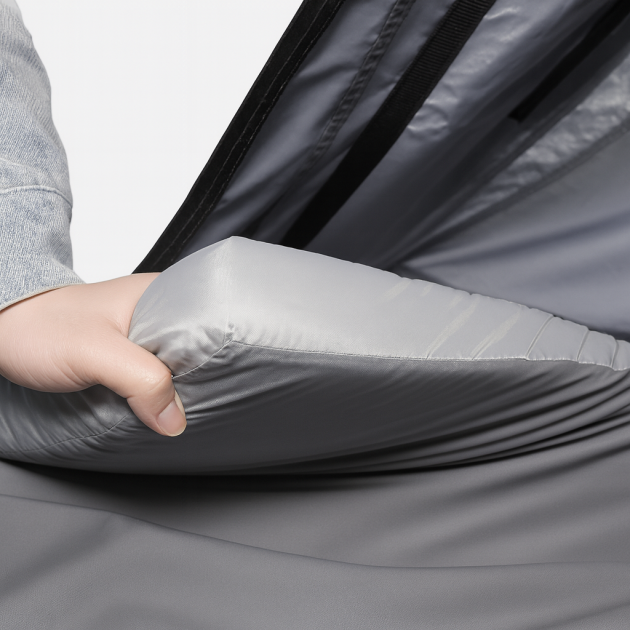

• 60 mm (2.4″) high-density foam mattress
• Removable, washable mattress cover
• Full-length integrated mattress — no split cushions

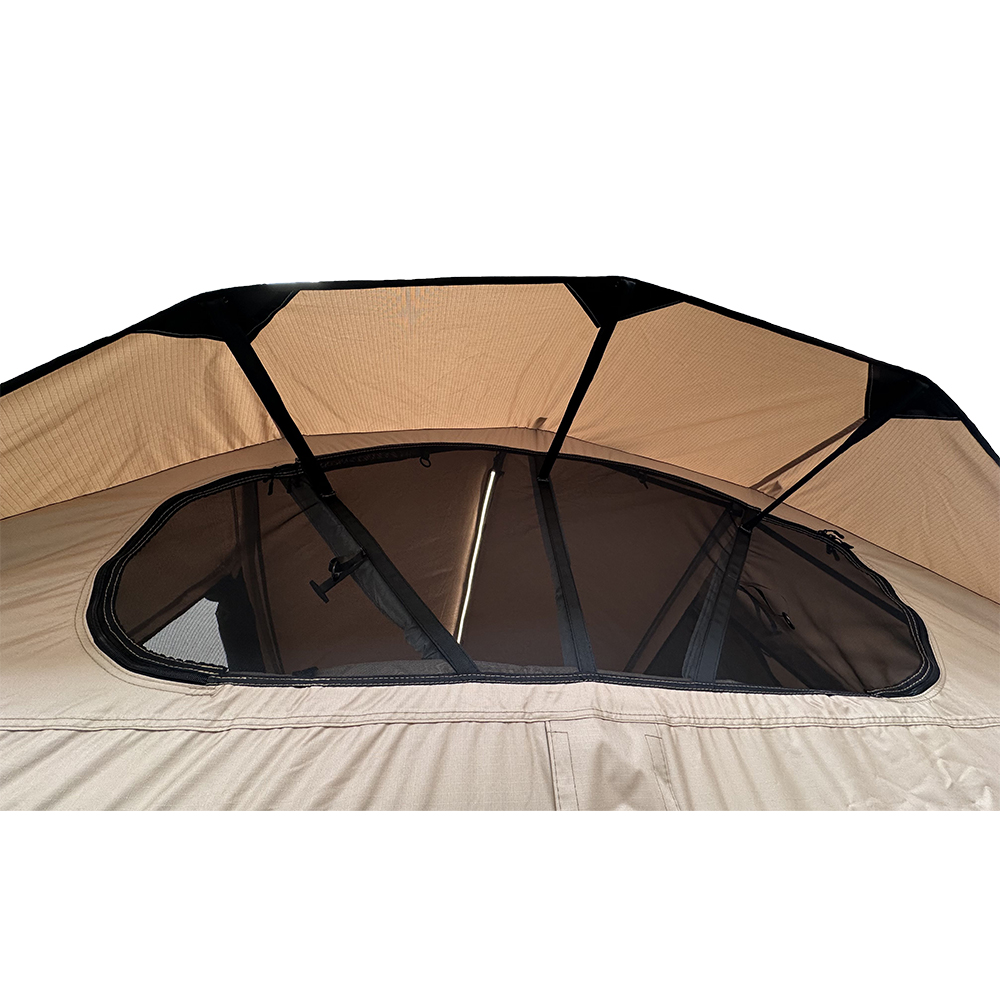

• Large windows and doors with insect mesh for ventilation
The 60 mm mattress spans the entire floor, creating a consistent sleeping surface for everyone inside.
Plenty of width and length allow families to spread out comfortably rather than pack in tightly.
Strong, Insulated Base Construction
• Welded aluminum tube base
• Insulated platform with anti-scratch aluminum sheet
• Aluminum anodized curved support poles

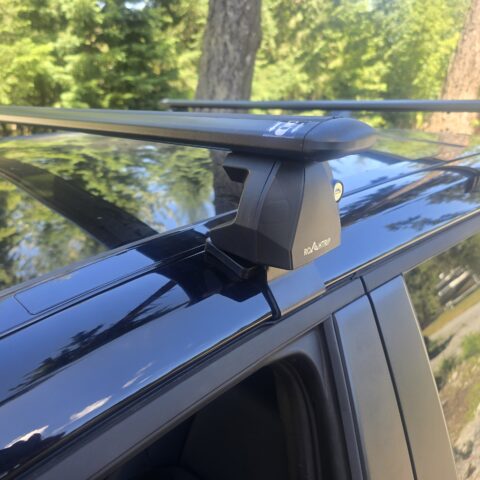

• Load-distributing base for crossbar compatibility
The insulated aluminum base reduces cold air transfer from below and spreads weight evenly across your rack system.
Simple Setup and Access
Deployment is straightforward:
Unclip the travel cover.
Fold the platform out over the side.
Extend the ladder.
Tension the poles.

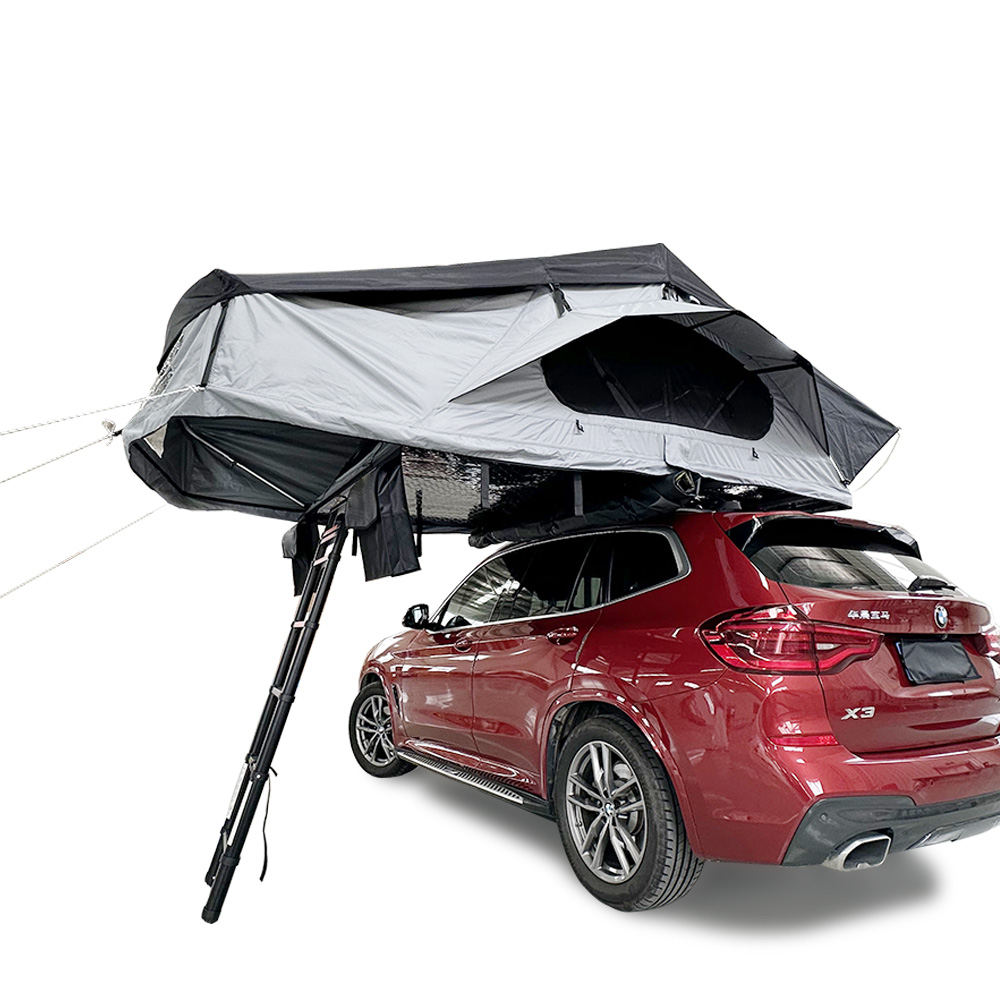

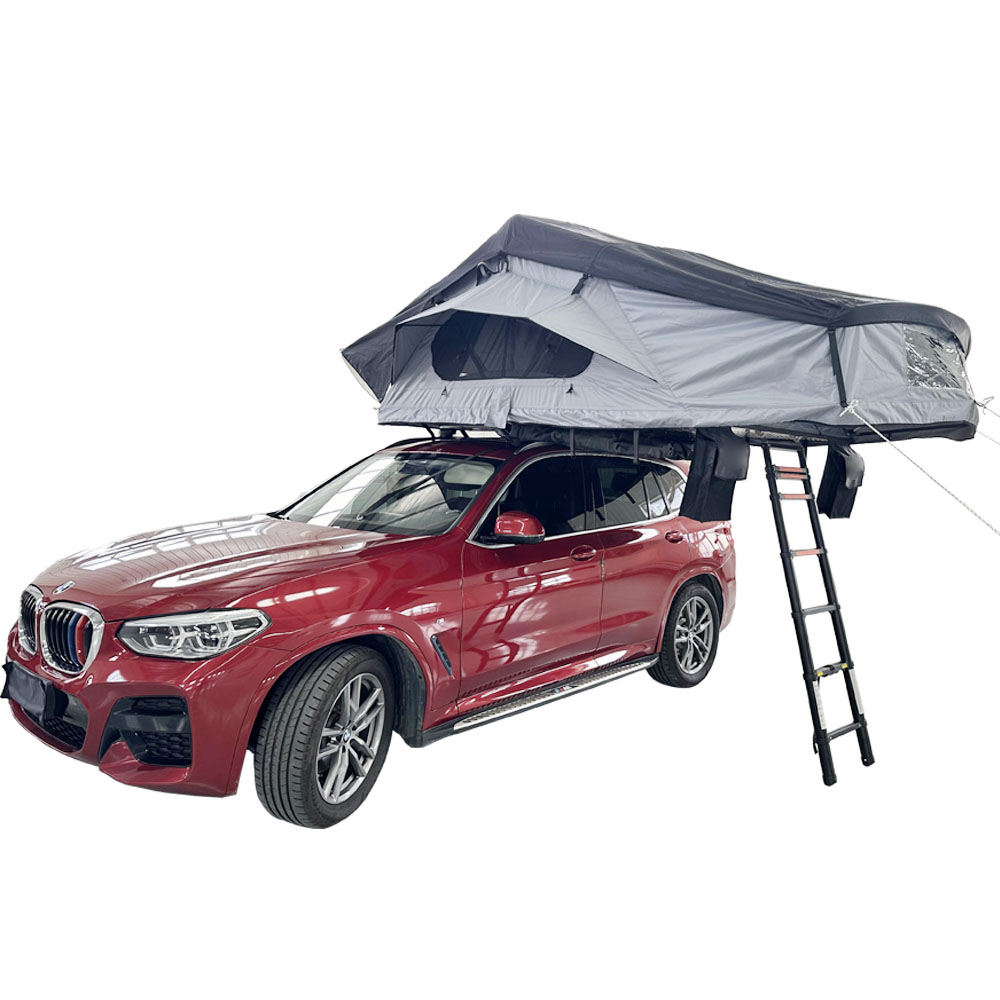

Access is via a 230 cm (90.5 in / 7 ft 6 in) anodized aluminum telescopic ladder that adjusts to lifted trucks and SUVs while supporting the extended platform.
Specifications
Category: Three-season soft shell rooftop tent
Sleeping Capacity: 4–5 person
Sleeping Footprint:
190 × 240 cm
Approx. 74 in × 94 in

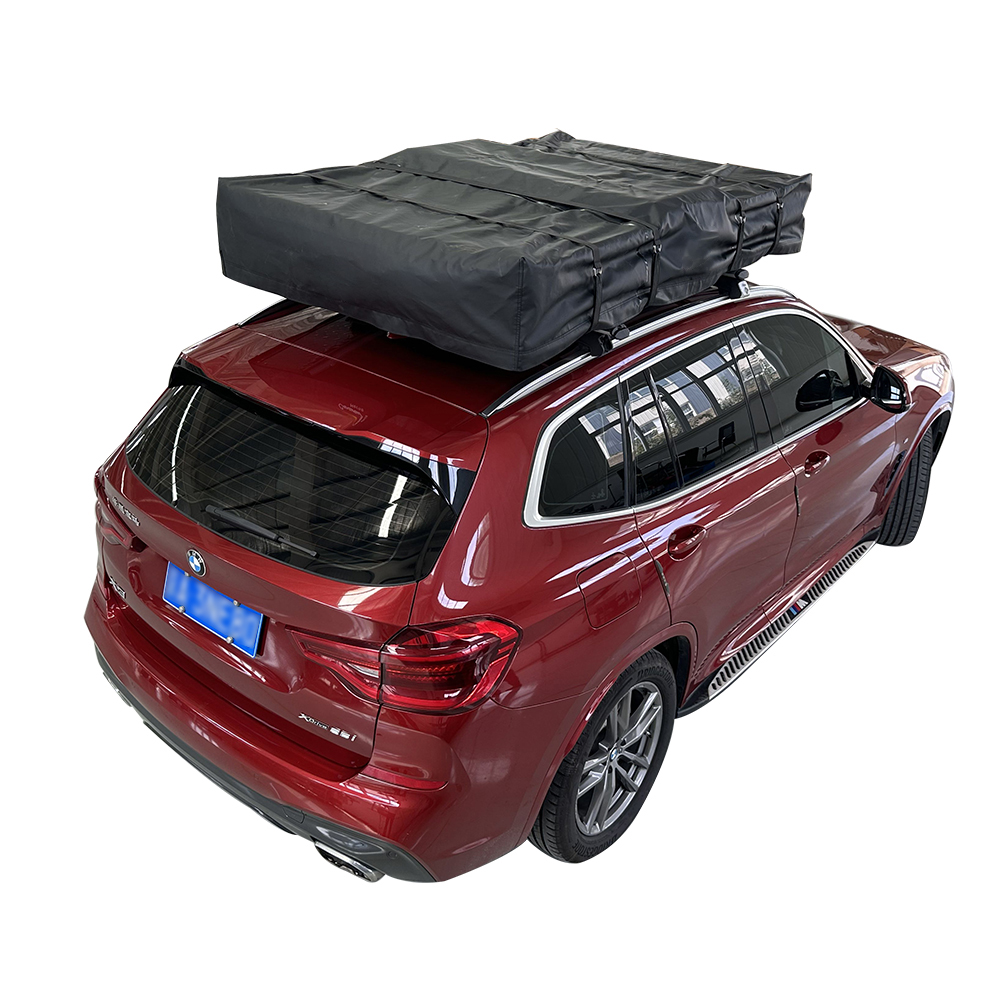

Closed Size:
195 × 125 × 28 cm
Approx. 76 in × 49 in × 11 in
Weight: 150 lbs
Included in Package
Basecamp 190™ rooftop tent
Heavy-duty PVC travel cover
60 mm mattress with removable cover
Telescopic aluminum ladder
Mounting hardware and installation manual
